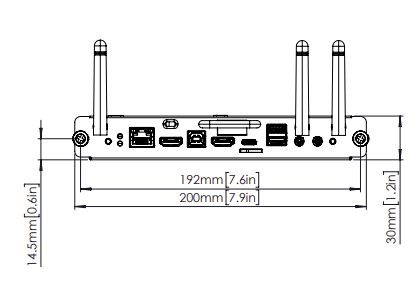

TECHNICAL DRAWINGS - Front
OPS-A2
View latest PDFGENERAL SPECIFICATIONS
- Device Type
- Open Pluggable Specification (OPS)
- Operating System
- Android 16
- RAM
- 8 GB
- Internal Storage
- 64 GB
- CPU
- ARM Cortex A72 x4 + A53 x4
- GPU
- ARM Mali-G52 MC3
- Touchscreen Compatibility
- Yes
- TPM
- 2.0
- Platform
- ARM v8-A, 64 bit
- Architecture
- ARM v8-A, 64 bit
- Display Resolution
- 4K UHD 3840 x 2160 @ 60 Hz
CONNECTIVITY
- HDMI Out
- x1
- HDMI In (Rear)
- x1
- USB-A 3.2 Gen 1 (Rear)
- 2
- USB-B Touch (Rear)
- 1
- USB-C (Rear)
- x1
- MicroSD Slot
- Yes
- LAN In (RJ45)
- Realtek 8111H, 10/100/1000 Mbps
- Wi-Fi (Client)
- Wi-Fi 6 (Dual band 2.4 GHz and 5 GHz)
- Bluetooth
- 5.2
- Mic In (3.5 mm)
- 1
- Audio Out (3.5 mm)
- 1
POWER
- Power Requirements
- 12-19 V DC
- Power Consumption Maximum
- 36 W
- Power Consumption Standby
- 0.5 W
ENVIRONMENTAL
- Operating Temperature
- 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature
- -20 °C to 60 °C (-4 °F to 140 °F)
- Operating Humidity
- 10% to 90% non-condensing humidity
- Storage Humidity
- 10% to 90% non-condensing humidity
PHYSICAL SPECIFICATIONS
- Product Dimensions
- 200 x 120 x 30 mm (7.9 x 4.7 x 1.18 in)
- Packed Dimensions
- 265 x 212 x 50 mm (10.4 x 8.3 x 1.97 in)
- Panel Net Weight
- 0.7 kg (1.54 lb)
- Packed Weight
- 0.84 kg (1.85 lb)
USABILITY
- Promethean Essential Apps
- Including Whiteboard, Screen Share, Screen Capture, Annotate, Spinner, and Timer
- Google Apps
- Including Play Store, Chrome, Drive, Meet, and YouTube
COMPLIANCE & CERTIFICATION
- Regulatory Certifications
- CB, CE, FCC, UL, RCM, RoHS
- EDLA Certified
- Yes
PACKED CONTENTS
- PACKED CONTENTS
- OPS-A x1, Antenna x3, Installation Guide x1
INSTALLATION
- INSTALLATION
- The installation of this product should be completed by a qualified installer. Use of components not supplied by Promethean or not meeting minimum specifications may impact performance, safety and warranty. For more information, visit Support.PrometheanWorld.com.
WARRANTY
- WARRANTY
- Three-Year Warranty. For more information, visit PrometheanWorld.com/Warranty.
SUPPORT
- SUPPORT
- For all Promethean products, visit Support.PrometheanWorld.com.

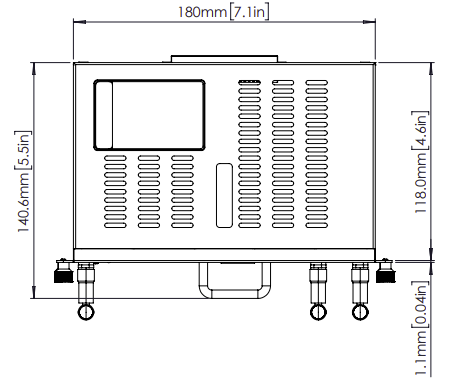

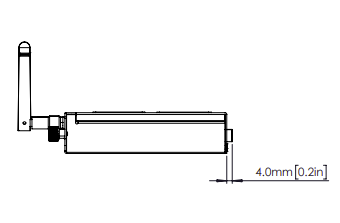

TECHNICAL DRAWINGS
