Accessible Spec Sheet

DISPLAY

Screen Size and Resolution: 65" 4K; UHD (3840 x 2160 @ 60 Hz) 75" 4K; UHD (3840 x 2160 @ 60 Hz) 86" 4K; UHD (3840 x 2160 @ 60 Hz)
Backlight Technology: Direct LED Backlight
Screen Type: TFT LCD
Blue Light Reduction: Yes
Bonded Glass: Yes
Aspect Ratio: 16:9
Display Area: 65": 1431 x 807 mm (56.3 x 31.8 in) 75": 1653 x 931 mm (65.1 x 36.7 in) 86": 1898 x 1069 mm (74.7 x 42.1 in)
Display Colours: 1.07 Billion (10-bit)
LCD Viewing Angle: 178°
LCD Response Time: ≤ 6.5 ms
LCD Refresh Rate (Panel): 60 Hz
LED Lifespan: 50,000 hours
Contrast Ratio: 5000:1 Dynamic 1200:1 Static
Brightness: 400 cd/m²
Ambient Light Sensor: Yes
Glass Hardness: 9H (pencil), 7 (Mohs)
Glass Type: Heat tempered
Glass Thickness: 3 mm
Glass Coating: Anti-Glare

Vellum Touch Technology: Yes
Continuous Touch Points: Up to 40
Touch Resolution: 32768 x 32768 px
Touch Response Time: ≤ 6 ms
Touch Accuracy: 1 mm
Scan Rate: Up to 200 Hz
Gestures and Edge Swipes: Windows® supported
Unique Pen IDs: 2
Pen and Touch Differentiation: Yes
Palm Erase: Yes
Palm Rejection: Yes
Writing-hand Palm Rejection: Yes
Pens Included: 2 x Passive battery-less pens
Pen Holder: Magnetic
Pen Tip Diameter: 3 mm
Pen Eraser Diameter: 8 mm
Classroom Essential Apps: Including Explain Everything Whiteboard, Annotate, Timer, Spinner, Screen Capture, Screen Share Receiver
Compatibility: Windows® 10 and 11; macOS® Ventura 13 and Sonoma 14; Linux® Ubuntu 22.04 to 24.04 LTS; ChromeOS™

OPS Slot: 1
HDMI In (Rear): 2 x 2.1 (HDCP 1.4 & 2.3 [HDMI1 ARC and CEC/ HDMI 2 CEC])
HDMI In (Front): 1 x 2.1 (HDCP 1.4 & 2.3)
HDMI Out (Rear): 1 x 2.1
Display Port (Rear): 1 x 1.4
USB-A (Rear): 1 x 2.0
USB-A (Rear): 2 x 3.2 Gen 1
USB-A (Front): 2 x 3.2 Gen 1
USB-B Touch (Front): 1 x 2.0
USB-B Touch (Rear): 2 x 2.0
USB-C (Front): 1 x 3.2 Gen 1
USB-C (Rear): 1 x 3.2 Gen 1, DP ALT Mode (HDCP 1.4 & 2.3), 65 W Power Delivery
USB-C Out (Rear): 1 x 3.2 Gen 1 (HDCP 1.4 & 2.3)
MicroSD Slot: Yes
LAN In (RJ45): 10/100/1000
LAN Out (RJ45): 10/100/1000
Wake-on-LAN: Yes
Wi-Fi (Client): 6
Bluetooth: 5.2
Mic In (3.5 mm): 1
Audio Out (3.5 mm): 1
SPDIF-Out: 1
RS-232: 1

Power Requirements: 100 V - 240 V AC
Max. Energy Star Reported Luminance 400 cd/m²: 65": 65 W
75": 71 W
86": 92 W
Power Consumption Standby: <= 0.5 W
Ultra-Quiet Fanless Design: Yes

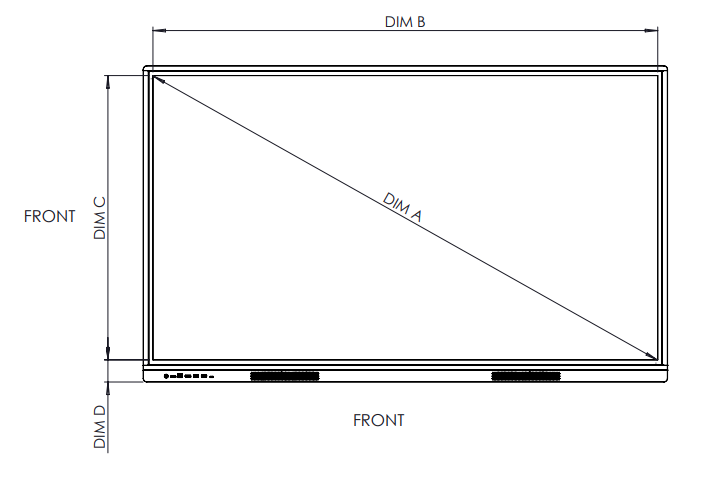

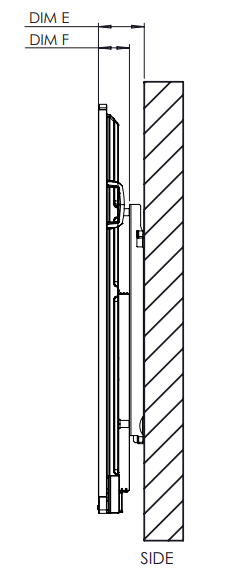

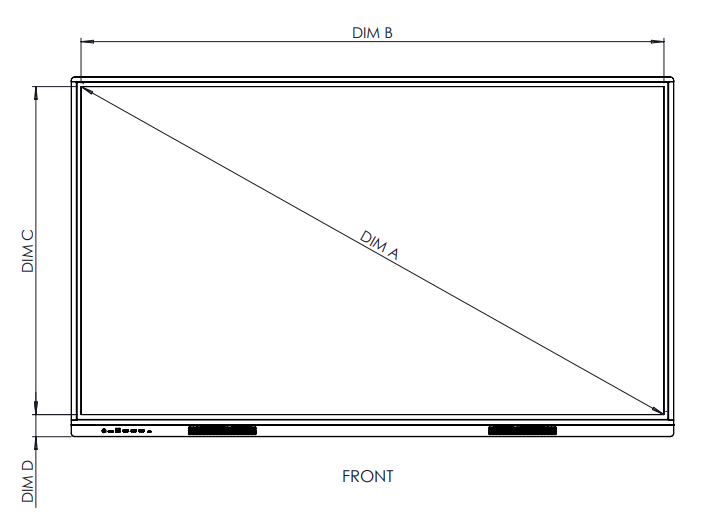

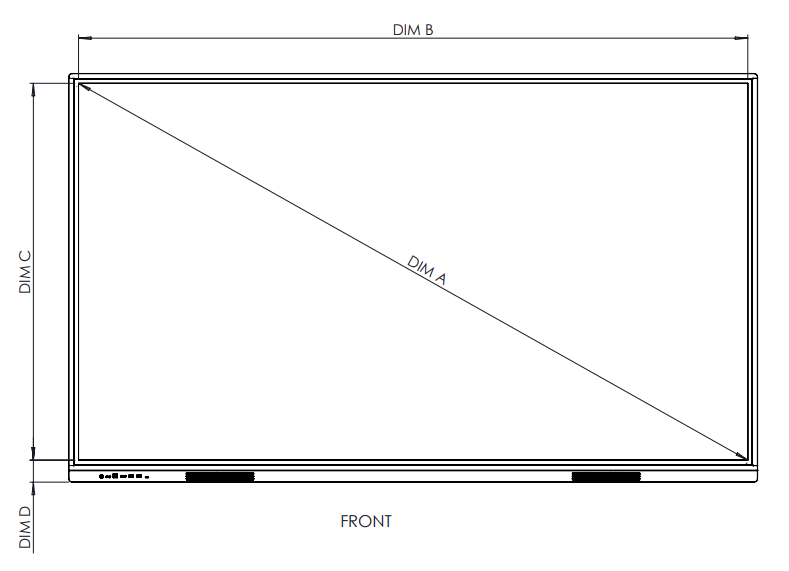

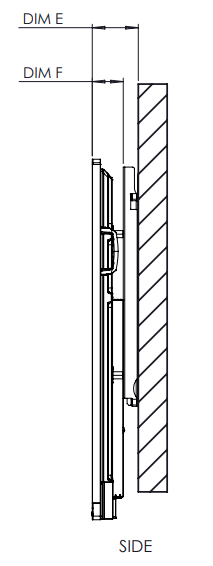

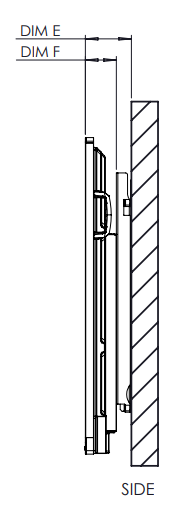

Panel Dimensions: 65": 1487 x 897 x 88 mm (58.5 x 35.3 x 3.5 in)
75": 1709 x 1022 x 88 mm (67.3 x 40.2 x 3.5 in)
86": 1954 x 1159 x 88 mm (76.9 x 45.6 x 3.5 in)
Packed Dimensions: 65": 1657 x 1007 x 185 mm (65.2 x 39.6 x 7.3 in)
75": 1873 x 1134 x 202 mm (73.7 x 44.6 x 8 in)
86": 2110 x 1270 x 222 mm (83.1 x 50 x 8.7 in)
Panel Net Weight: 65": 32 kg (70.5 lb)
75": 43.4 kg (95.7 lb)
86": 56.8 kg (125.2 lb)
Packed Weight: 65": 41.3 kg (91.1 lb)
75": 54.5 kg (120.2 lb)
86": 71.7 kg (158.1 lb)

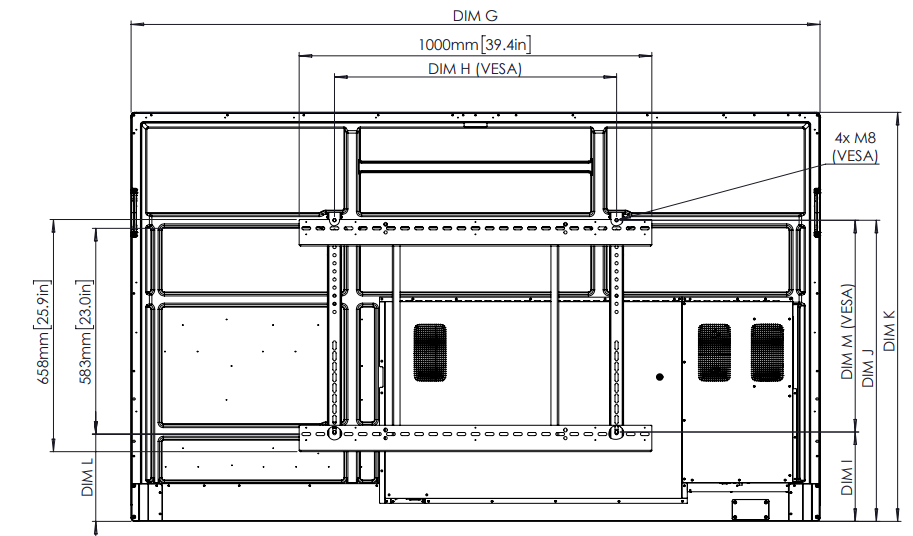

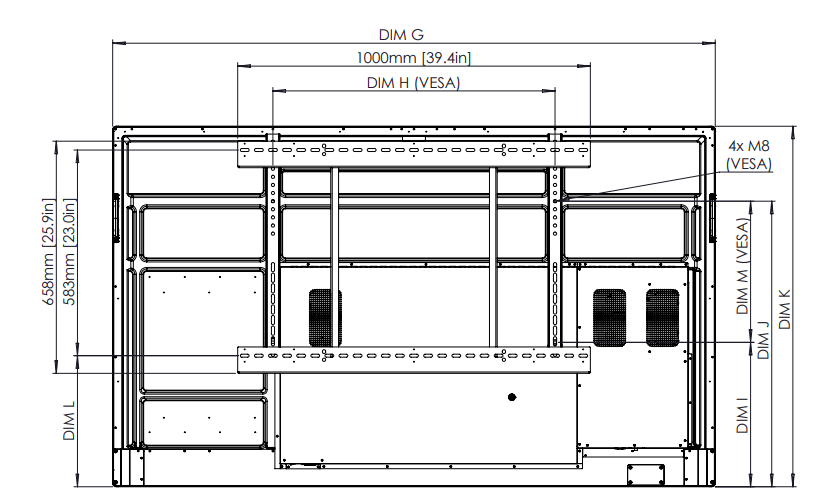

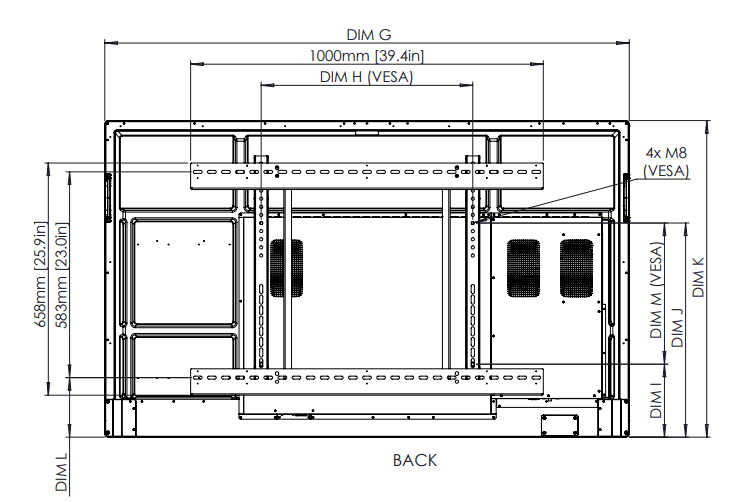

VESA Mount Point: 65": 600 x 400 mm (23.6 x 15.7 in)
75": 800 x 400 mm (31.5 x 15.7 in)
86": 800 x 600 mm (31.5 x 23.6 in)

PACKED CONTENTS: 1 x ActivPanel LE 2 x Regional Power Cables 1 x 3 m HDMI Cable 1 x 3 m USB Cable (A-B) 1 x 2 m USB-C Cable 1 x Remote Control 2 x Pens 1 x Quick Install Guide Desiccant

INSTALLATION: The installation of this product should be completed by a qualified installer. Use of components not supplied by Promethean or not meeting minimum specifications may impact performance, safety and warranty. For more information, visit Support.PrometheanWorld.com.

WARRANTY: Warranty term and upgrade options vary by region. Contact your local reseller or distributor for information and visit PrometheanWorld.com/Warranty.
